NOTES FOR EMD 6 WHEEL TRUCKS
FLEXICOIL C1 truck early sideframe castings, whb of 13'-07". Wheel centers are 6'-09 1/2" and 6'-09 1/2". These trucks have three brake cylinders mounted at top of each sideframe and clasp type brakes. These were used on the SD7,9,18,24, early 28 &35's.

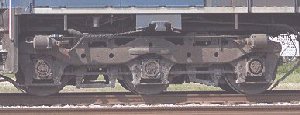

FLEXICOIL C1M truck early sideframe castings, whb of 13'-07". Wheel centers are 6'-09 1/2" and 6'-09 1/2". These trucks have been modified to two brake cylinders mounted at top of each sideframe and single shoe brakes. Seen on conrail SD50's.

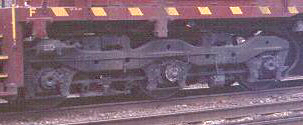

FLEXICOIL C2H1L truck modified sideframe castings, whb of 13'-07". Wheel centers are 6'-09 1/2" and 6'-09 1/2". These trucks have two brake cylinders mounted low and one nounted high on each sideframe, single shoe type brakes. Introduced early 1967. Pictures are the best answer the question of which unit had which trucks. Some SD38, 40 & 45's used these trucks.

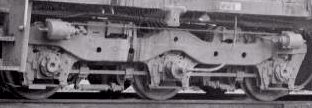

FLEXICOIL C2H truck modified sideframe castings, whb of 13'-07". Wheel centers are 6'-09 1/2" and 6'-09 1/2". These trucks have two brake cylinders mounted high on the frame, single shoe type brakes. Introduced in 1968 Pictures are the best answer the question of which unit had which trucks. Some SD38, 40 & 45's used these trucks.

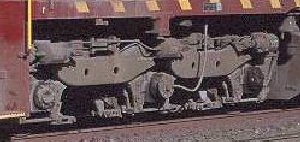

FLEXICOIL C2C truck modified sideframe castings, whb of 13'-07". Wheel centers are 6'-09 1/2" and 6'-09 1/2". These trucks have three brake cylinders mounted high on each sideframe, with clasp type brakes. Introduced in 1968. Pictures are the best answer the question of which unit had which trucks. Some SD38, 40 & 45's used these trucks.
FLEXICOIL C2L truck modified sideframe castings, whb of 13'-07". Wheel centers are 6'-09 1/2" and 6'-09 1/2". These trucks have two brake cylinders mounted low on each sideframe and single shoe type brakes. These were used on the late SD28 &35, and some SD45's.
